Quick Link Stainless Steel 0700A01
The Quick Link belongs to connecting parts.
The parts are made from grade 304 or 316 stainless steel for maximum corrosion resistance and durability. We can also provide parts made of carbon steel with plating.
We provide a whole range of parts to ensure the perfect fit for every product. The parts are rustproof, tough, secure, reliable, durable.
It is ideal for marine, industrial, rigging and webbing applications.

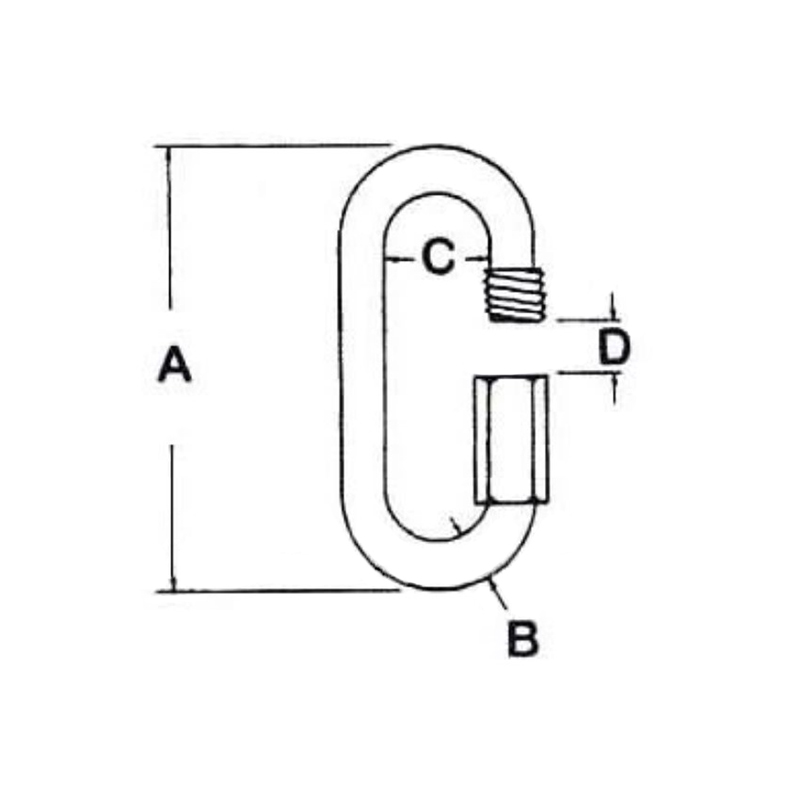

| A ( mm / inch ) | B ( mm / inch ) | C ( mm / inch ) | D ( mm / inch ) | WLL ( Work Load Limit ) |
| 36 / 1.4173″ | 3.5 / 0.1378″ | 10 / 0.3937″ | 5 / 0.1969″ | 180 kgs / 400 lbs |
| 40 / 1.5748″ | 4 / 0.1575″ | 11.5 / 0.4528″ | 5.4 / 0.2126″ | 220 kgs / 500 lbs |
| 48.5 / 1.9094″ | 5 / 0.1969″ | 13 / 0.5118″ | 6.5 / 0.2559″ | 320 kgs / 700 lbs |
| 57 / 2.2441″ | 6 / 0.2362″ | 14.5 / 0.5709″ | 7.5 / 0.2953″ | 400 kgs / 900 lbs |
| 67 / 2.6378″ | 7 / 0.2756″ | 16.5 / 0.6496″ | 8 / 0.3150″ | 550 kgs / 1200 lbs |
| 74 / 2.9134″ | 8 / 0.3150″ | 17.5 / 0.6890″ | 10 / 0.3937″ | 680 kgs / 1500 lbs |
| 83.5 / 3.2874″ | 9 / 0.3543″ | 19 / 0.7480″ | 11 / 0.4331″ | 860 kgs / 1900 lbs |
| 90 / 3.5433″ | 10 / 0.3937″ | 20.5 / 0.8071″ | 12 / 0.4724″ | 1050 kgs / 2300 lbs |
| 104.5 / 4.1142″ | 12 / 0.4724″ | 22.5 / 0.8858″ | 15 / 0.5906″ | 1140 kgs / 2500 lbs |
